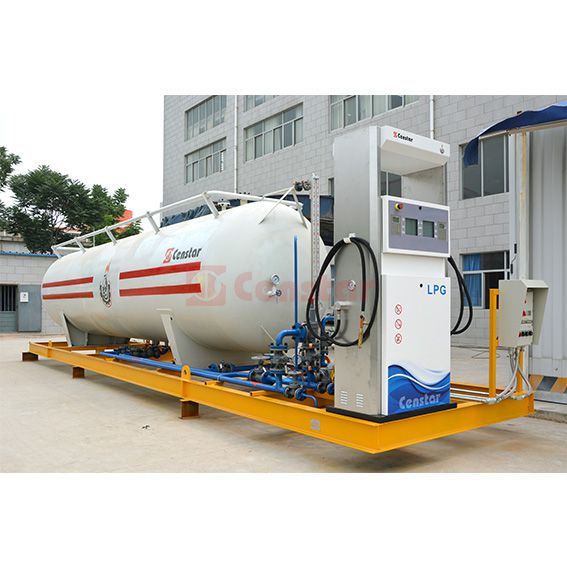

LPG Dispenser
Fuel Dispenser Available OptionsSuitable medium: LPG
Accuracy: ±1.0%
Flow range: 10 ~ 60 l/min
Environment temperature -30℃～55℃
Easy ways to get the answers you need.Perfectly customizable your fuel dispenser and gas station！
description
LPG Dispenser Main features
1. Aerated process automatic control, double-sided automatic display and volume during the charging process, as the amount of gas and the unit price (shown with luminous).
2. If power off, Has data protection, display the current gas data at a time.
3. Mass storage, can query not less than 12000 times of gas data
4. Monitoring system, monitoring the temperature of the filling process, flow, controlair speed,
5. When the pressure and flow more than set value, Close the valve automatically
6. Built-in import clock system, even if power off, Stilltiming accurate and reliable
7. Can query the totalcumulative amount at any time
8. Have the function of preset
9. Adjustable velocity value and density
10. Configuration of inlet ballvalve
11. Can check every gas data, and aerated time;Can query the shift gas accumulated volume, amount, the accumulative amount of the total.
12. With functions of automatic detection fault, automatically shows fault code.
13. In the filling process can directly show the flow rate, temperature, Ensure the safety of the gas process
14. No flow signal, automatic shut down, protect the interests of the owner.
15. Smallflow protection
16. With metal keyboard
parameter
LPG Dispenser
| Flow Range | 10 ~ 60 l/min | Maximum working pressure | 2.5 MPa |
| Nozzle | Single or double | Measured at the levelof accuracy | level1 |
| Power supply | AC220V±15% 50/60Hz | Explosion-proof rating | Exdib II AT4 |
| Working Environment temperature | -30℃～55℃ |
