Censtar EV DC Charger Split Pile
Fuel Dispenser Available OptionsSuitable for dispersed charging of passenger cars, electric buses, logistics vehicles, sanitation vehicles, and other vehicle models, supporting multi gun simultaneous charging and multi gun round charging.
Easy ways to get the answers you need.Perfectly customizable your fuel dispenser and gas station！
description
Features:
(1) Plug and play: Plug the charging nozzle into the car for automatic identification and confirmation, and support four charging methods: plug and play, VIN authentication, APP scanning, and card swiping.
(2) User-friendly operation interface: touch screen, easy to operate.
(3) Safe and reasonable electrical cabinets: first-class electrical solutions with beautiful appearance and reliable quality. The AC incoming line has the function of leakage protection, which is considered in terms of electrical layout, wiring harness layout, terminal selection, and crimping process.
(4) Charging compatibility: software compatibility with both old and new national standards; automatic switching of auxiliary power supply, suitable for charging passenger cars, commercial vehicles, buses, etc.
(5) Intelligent power distribution: flexible power distribution, constant power charging.
(6) Environmental adaptability: Outdoor cabinet with IP54 protection level; Built-in dehumidification system adapted to 95% or higher humidity; Operating temperature -20℃~+50℃; with temperature and humidity control system and internal anti-condensation heater to adapt to outdoor temperature in summer and winter.
(7) Optimized system solution: PDU power distribution unit for flexible charging function; Independent design for power distribution and charging to achieve personalized configuration; Modular design for power switching system with reliable operation and low failure rate, flexible output power; Direct heat dissipation channel for stable equipment operation; Integrated output detection unit for easy maintenance and replacement.
(8) It can be connected to the IC card management system of Censtar fuel-gas-electricity stations.
parameter

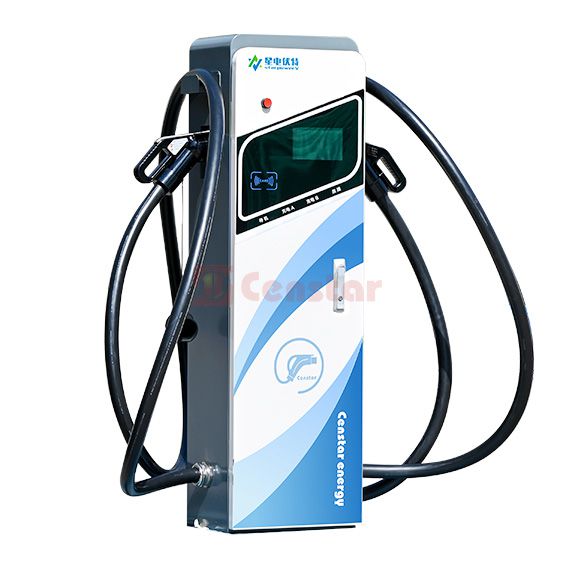

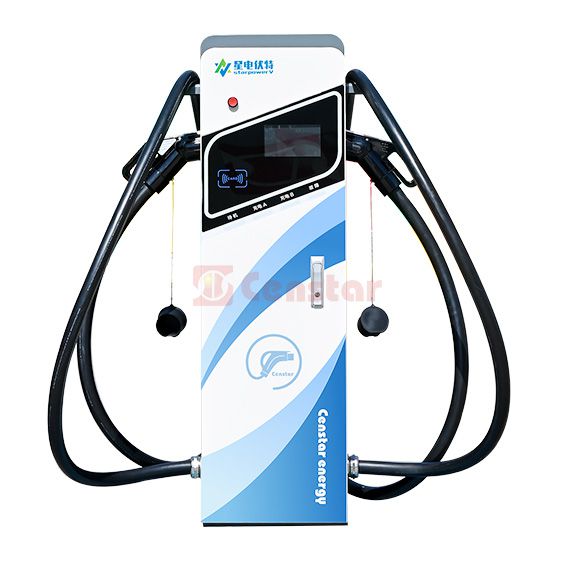

Censtar EV DC Charger Split Pile
| Model | 240KW four-nozzle charging pile |
| Equipment power | 240KW |
| Number of charging nozzles | 4 (split) |
| The maximum output current of the whole machine | 600A |
| Power distribution | Flexible switching |

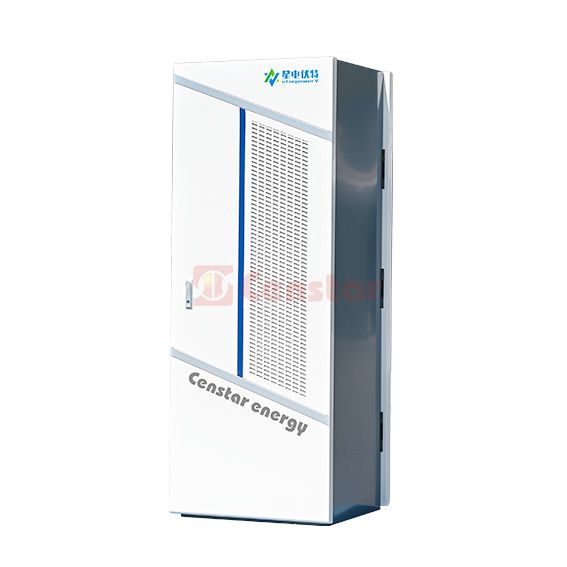

| Size (W *D*H) mm | 800*800*2200 (charging cabinet) 400*240*1350 (charging pile) |
| Input voltage | AC380V 50HZ AC380V 50HZ |
| Output voltage | DC200-750V DC200-750V |
| Constant power range | 400V-750V 400V-750V |
| Voltage regulation accuracy | ± 0.5% |
| Current regulation accuracy | <±0.1% |
| Screen | 7-inch ultra-high-sensitivity touch screen with a resolution of 800*480dpi |
| Measuring accuracy | 0.50% |
| Payment methods | Swiping card, scanning code |
| Communication mode | Ethernet or 4G |
| Power factor | ≥0.99 |
| Efficiency | ≥95% |
| Level of protection | IP54 |
| Operating temperature | -20~50℃ |
| Ambient humidity | ≤95% |
| Working altitude | ≤2000M |
| Cooling mode | Forced air cooling |
| Cable | 5 meters by default, which is customizable |
| Electrical protection | Overvoltage protection, undervoltage protection, short circuit protection, overload protection, grounding protection, over temperature protection, lightning protection |
