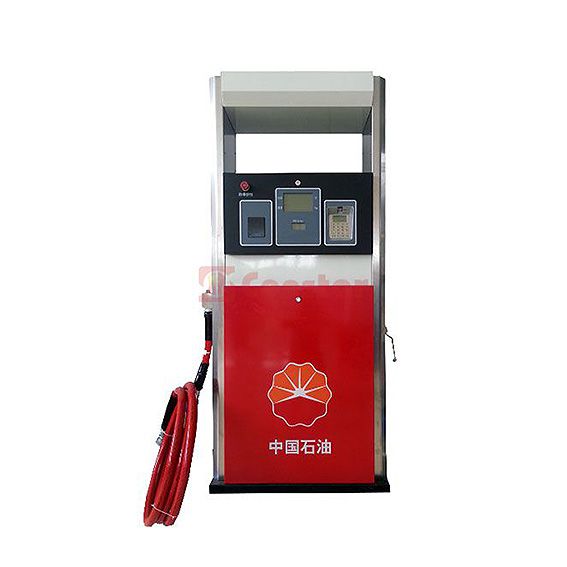

Loading device/ unloading device
Fuel Dispenser Available OptionsCNG loading device CNG Flow rate: (1- 63) kg/min or(1-90)Nm³/min
CNG Unloading device CNG Flow rate: (1- 56) kg/min or(1-80)Nm³/min
Nozzle:single/double
Environment temperature -25℃～+55℃
Easy ways to get the answers you need.Perfectly customizable your fuel dispenser and gas station！
description
parameter
Loading device/ unloading device
MODEl | CSJQZD11 | CSJQZD1S | CSJQZD21 | CSJQZD2S |
| lINE | 1 | 1 | 2 | 2 |
| NOZZlE | 1 | 2 | 1 |
CNG loading device CNG Flow rate: (1- 63) kg/min or(1-90)Nm³/min
| MODEl | CSXQZD11 | CSXQZD1S | CSXQZD21 | CSXQZD2S |
| lINE | 1 | 1 | 2 | 2 |
| NOZZlE | 1 | 2 | 1 | 2 |
CNG Unloading device CNG Flow rate: (1- 56) kg/min or(1-80)Nm³/min
| Suitable medium | CNG | Nozzle | single/double |
| Maximum pressure | 25MPa | Rated pressure | 20MPa |
| Accuracy | ±0.5% | Explosion-proof rating | ExdeibmbⅡBT4 Gb |
| Environment temperature | -25℃～+55℃ | Power supply | AC 220V (-15%~10%)/ 50Hz(±1Hz) |
| Flow range | (1- 56)kg/min(1-63)kg/min | Single measurement range | 0～9990.00 kg 0～9990.00 kg or money |
| The cumulative measurement range | 0～42949672.95 kg or money | Flow meter | Use imported mass flow meter with temperature sensor to compensate |
| Packing size | 2400mm×1200mm×620mm | Net weight | 220kg |
